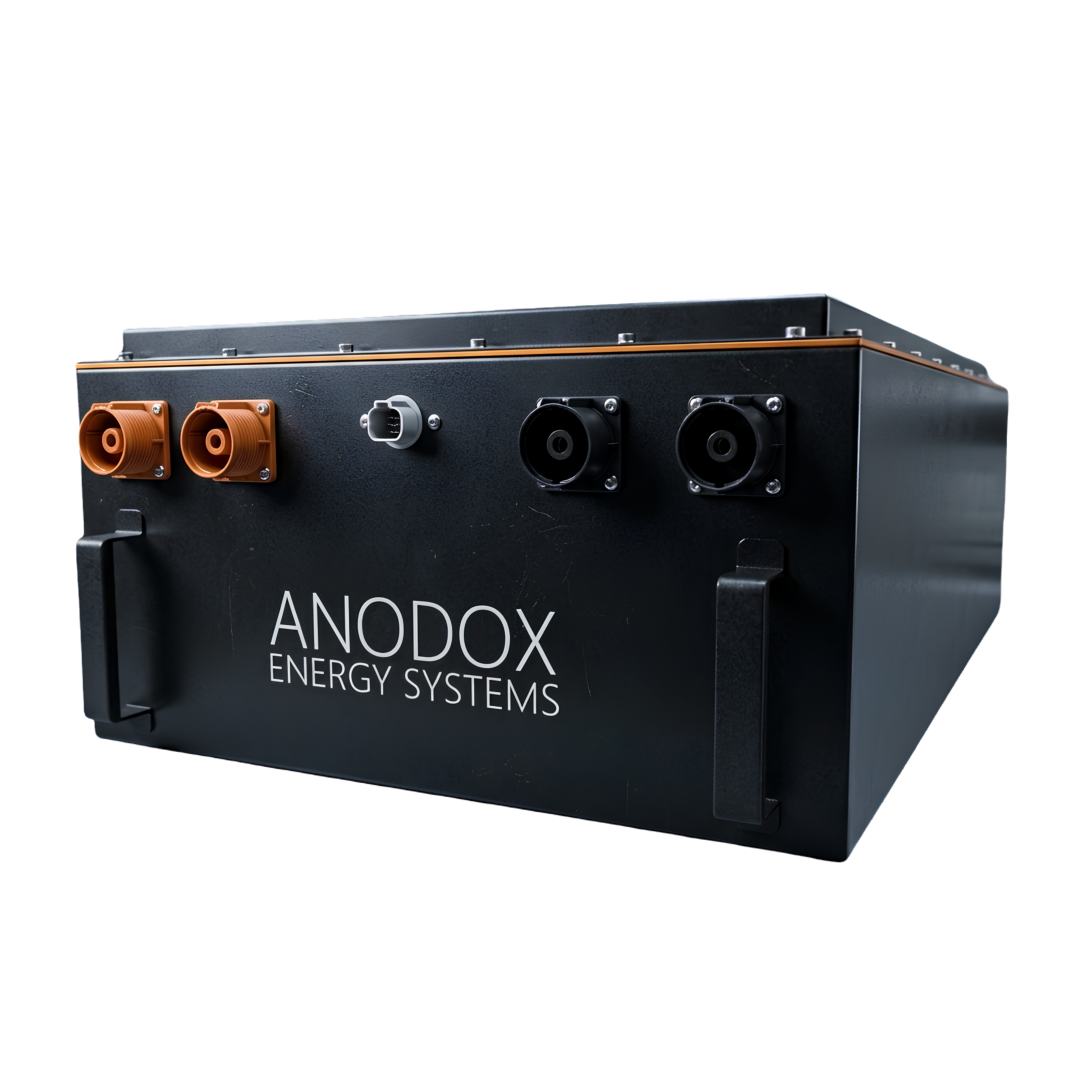

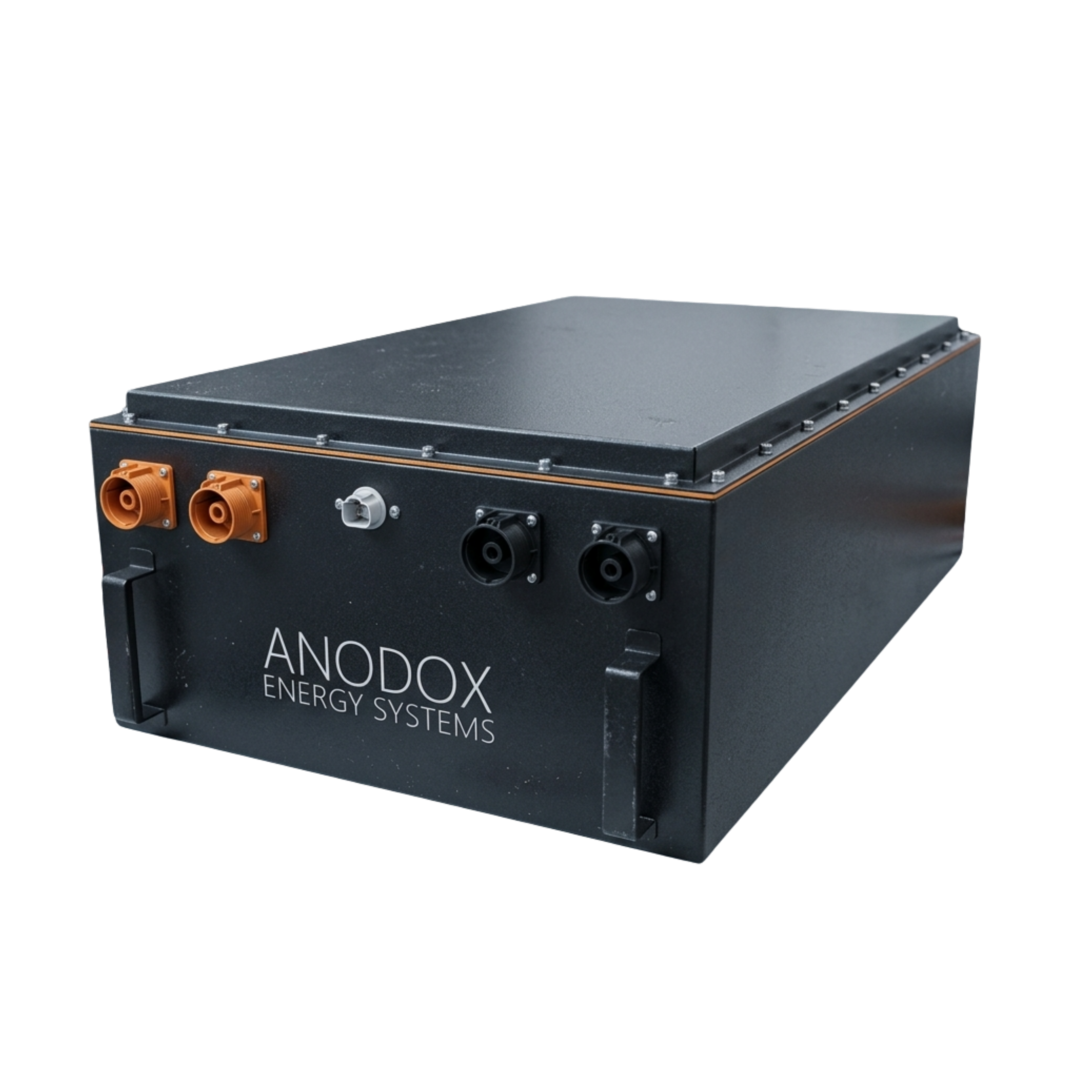

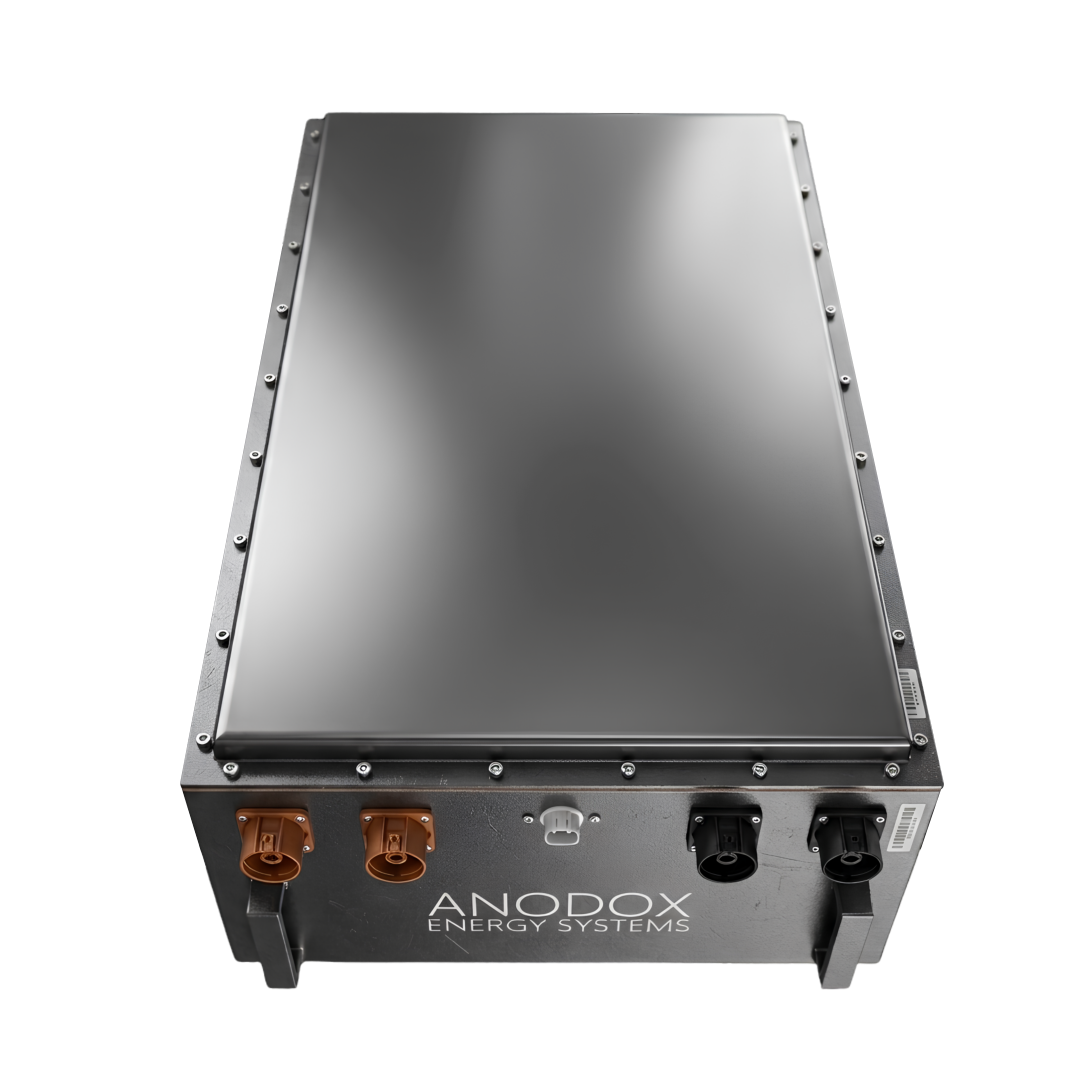

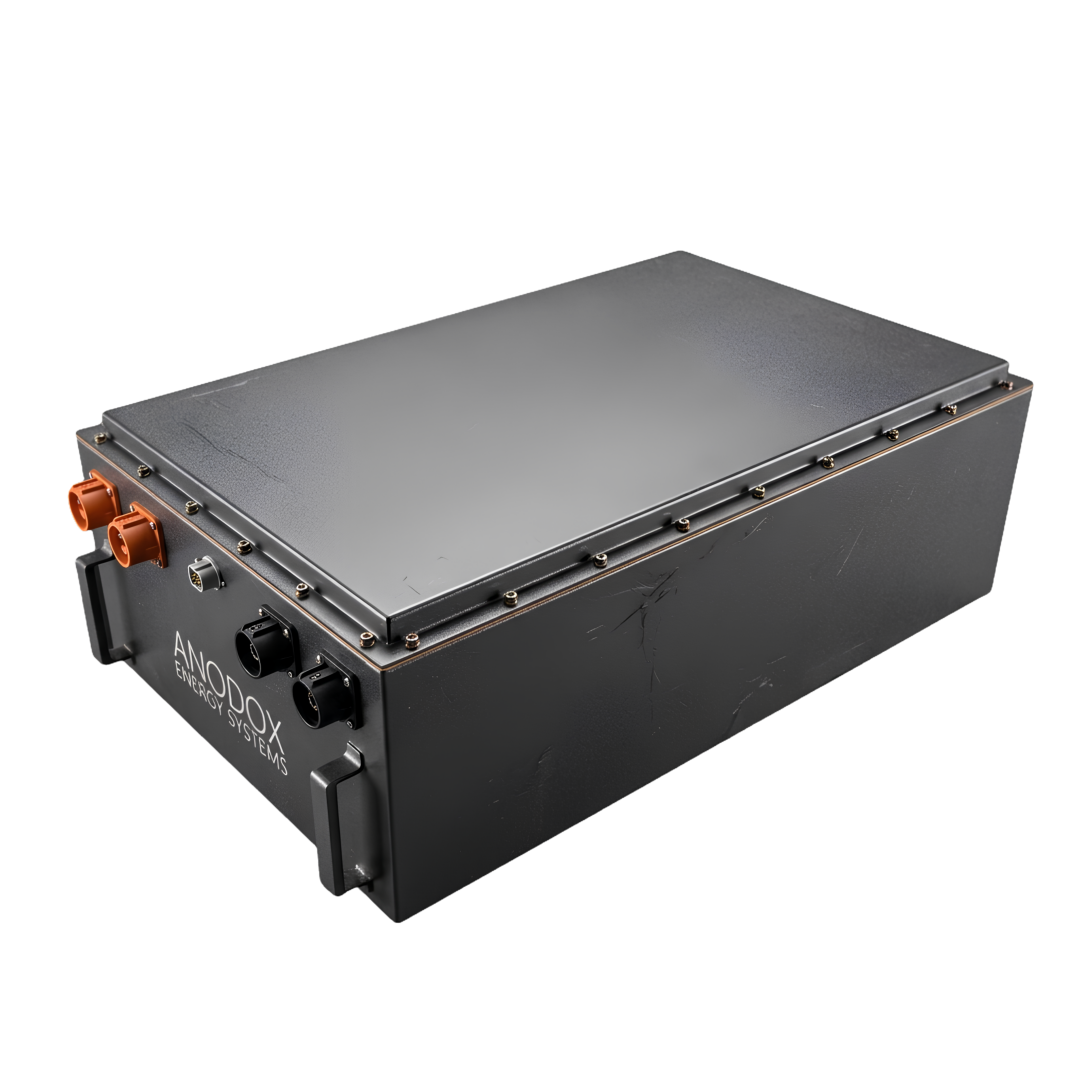

48V Modular Immersion Energy Bar
48V Modular Immersion Energy Bar
48V Modular Immersion Energy Bar

48V Modular Immersion Energy Bar

The 48V Energy Bar delivers 15,4 kWh of Energy with a Nominal Power  of 15 kW. The...
Vendor: Anodox
Availability: In Stock
€4.000,00
€4.000,00
Subtotal: €4.000,00
Ask An Expert
48V Modular Immersion Energy Bar

48V Modular Immersion Energy Bar

€4.000,00
48V Modular Immersion Energy Bar
48V Modular Immersion Energy Bar
48V Modular Immersion Energy Bar

48V Modular Immersion Energy Bar

€4.000,00
SPECIFICATIONS
SPECIFICATIONS
x
Technical Data 15 kWh Energy Bar
Nominal Energy Capacity 15.3 kWh
Useable Energy Capacity (95%) 14.5 kWh
Nominal Power 15.4 kW
Volumetric Energy Density 189 Wh/l
Gravimetric Energy Density 149 Wh/kg
Volumetric Power Density 567 W/l
Weight 110 kg
Dimensions (L x W x H) mm 636 x 419 x 267 mm
Thermal Management Adaptive Immersion Technology
Active Thermal Runaway Suppression
Protection from External Fires
Housing/Certification Metal Sheet
IP67
ECE R100
Cycles '>4000 (@ 1C)
Charge / Discharge C Rates 3C / 3C
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
x

The 48V Energy Bar delivers 15,4 kWh of Energy with a Nominal Power  of 15 kW. The weight is 90 kg and the unit has an impressive energy  density of 189 Wh/l. The power density is also solid at 13.4 to 40.2 kW. The unit has a fast charge capability of 20 min and has the latest Anodox Adaptive Immersion Technology solution.
