Product Details
xAvailable for Automotive, Marine and Stationary Applications

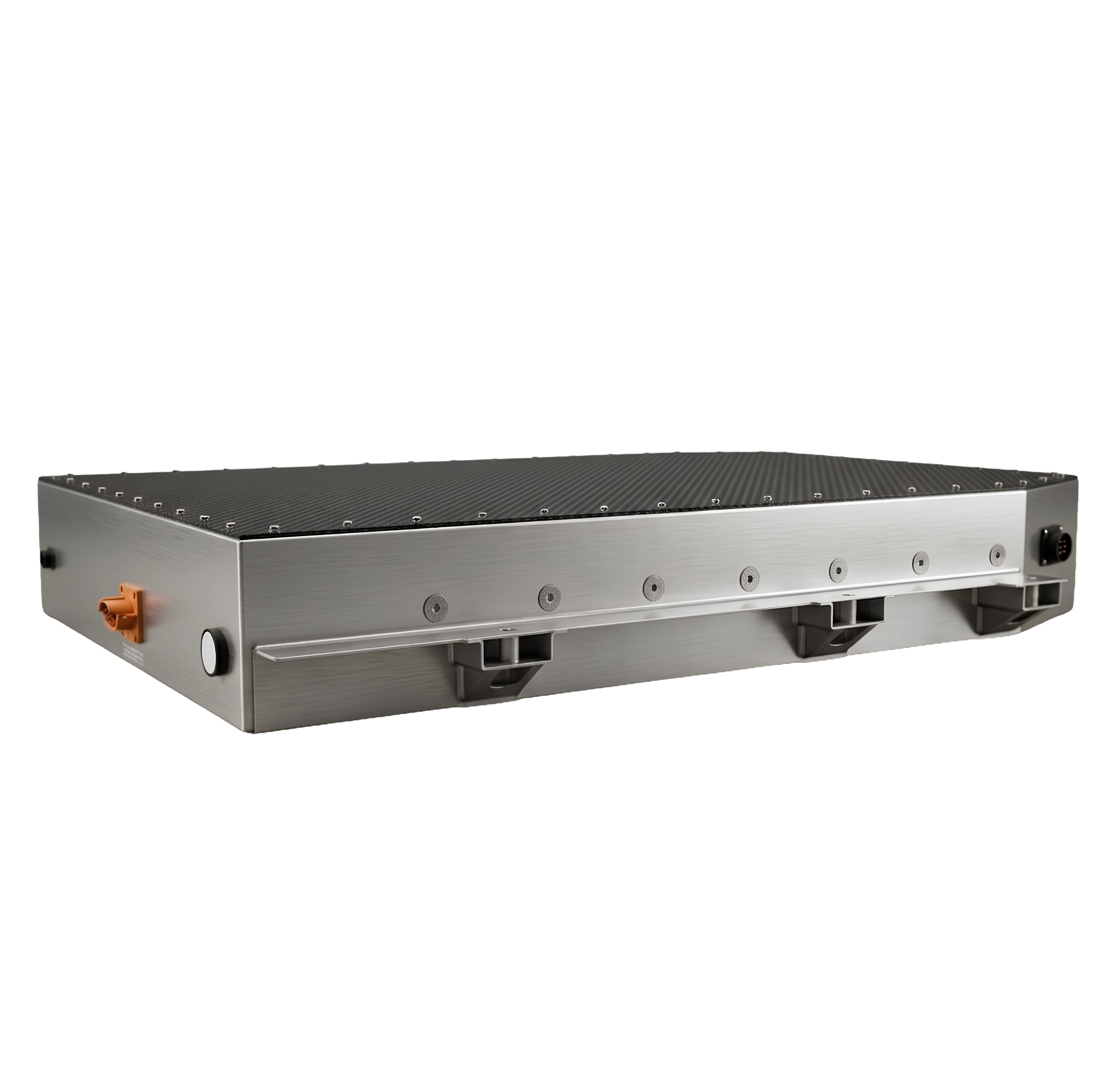

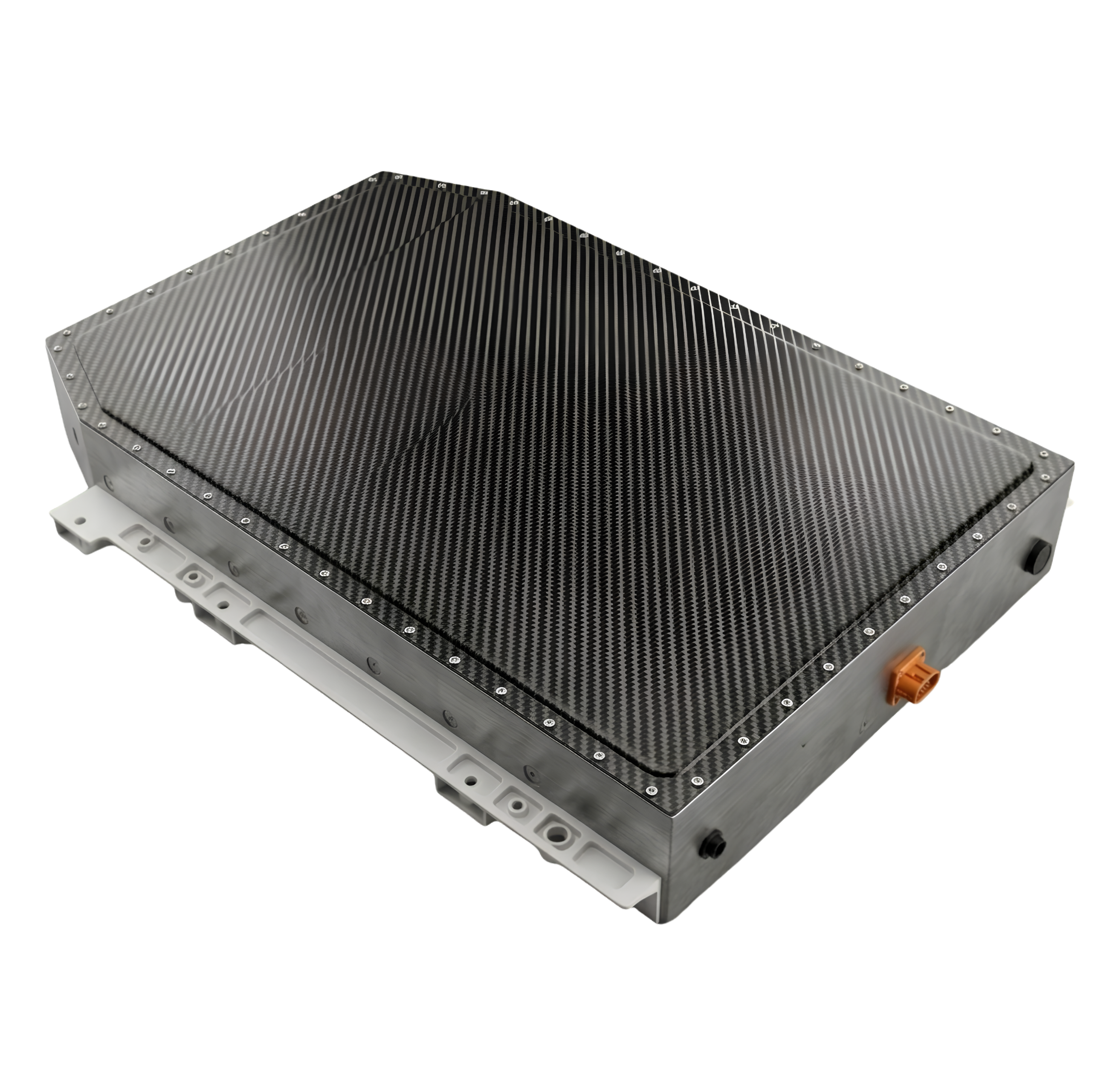

The Anodox Immersion-Cooled Battery delivers peak performance across 400V–800V architectures, combining ultra-safe LFP chemistry with a streamlined Blade Cell Technology. By using a Cell2Pack (CTP) structure, we maximize energy density and thermal stability through direct cell immersion. Best of all, this platform is completely configurable to your exact needs—tailoring voltage and capacity to fit your specific vehicle requirements perfectly.
High Power Output: 45kW at 400V for exceptional range and acceleration.
Immersion Cooling: Superior temperature control for safety and durability.
Compact Design: Lightweight and easy to integrate into various platforms.
Smart Connectivity: Real-time monitoring and diagnostics for efficiency.
Specifications
x| Technical Data | 45kWh HV Battery Specification |
|---|---|
| Peak Power | 180kW |
| Rated Energy | 45.3kWh |
| Usable Energy Capacity (95%) | 42.75kWh |
| Volumetric Energy Density | 204Wh/l |
| Gravitational Energy Density | 130Wh/kg |
| Volumetric Power Density | 417W/l |
| Configuration | Cell2Pack |
| Voltage | 380V |
| Charge C-Rates | Peak 2C / Continuous 1C |
| Discharge C-Rates | Peak 4C / Continuous up to 4C |
| Working Temperature | 0-50°C (Charge) / -20°C – 50°C (Discharge) |
| Weight | Approx. 350kg |
| Dimensions | 1330 x 880 x 190mm |
| Recommended SOC Range | 20-80% |
| Cell Chemistry | Lithium Iron Phosphate (LFP) |
| Housing / Certification | Metal Sheet / IP67 / ECE R100 |
| Cycles | >4000* (@1C) |
| Thermal Management | Adaptive Immersion Technology, Active Thermal Runaway Suppression, Protection from External Fires |
*depending on customer configuration
