Product Details
xOverview

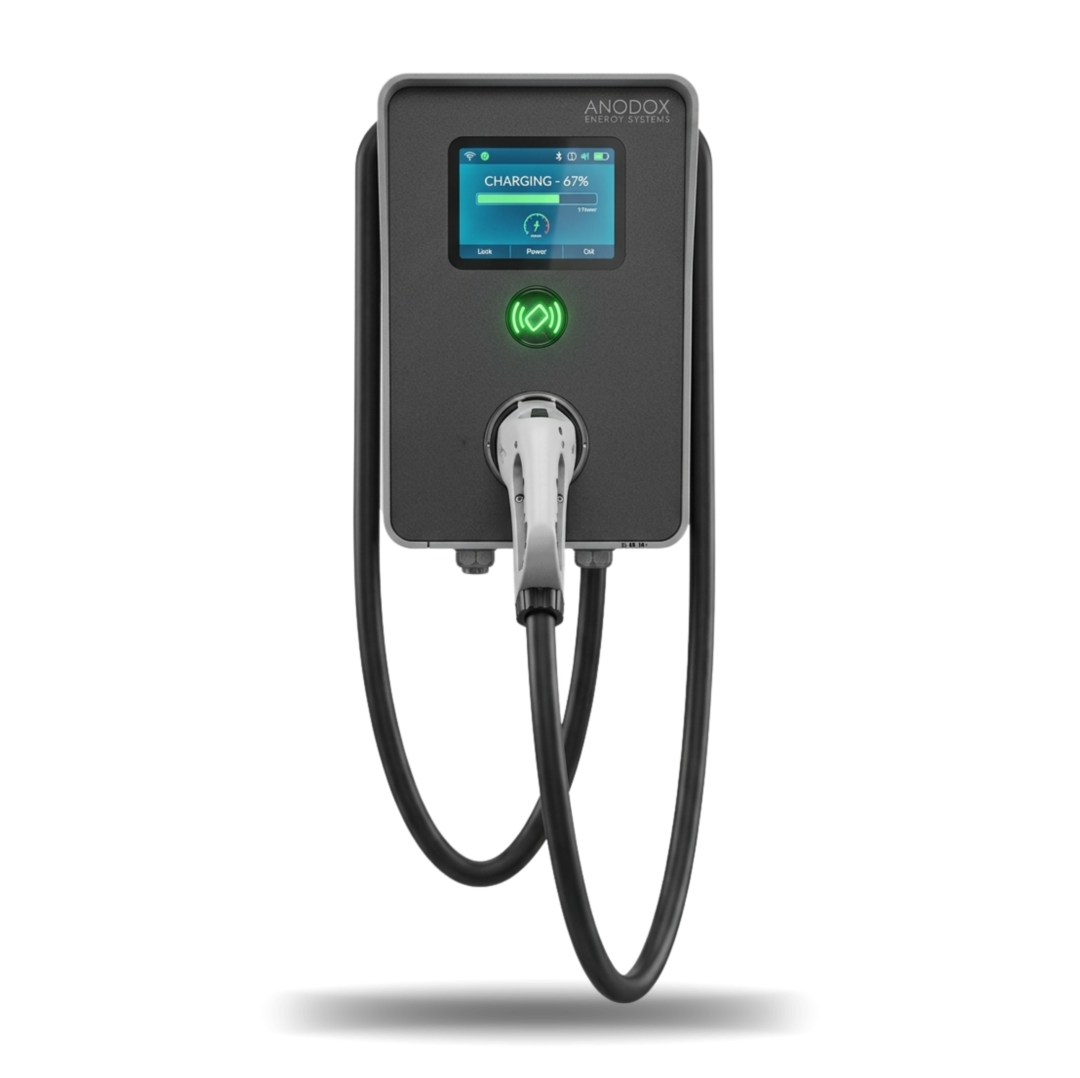

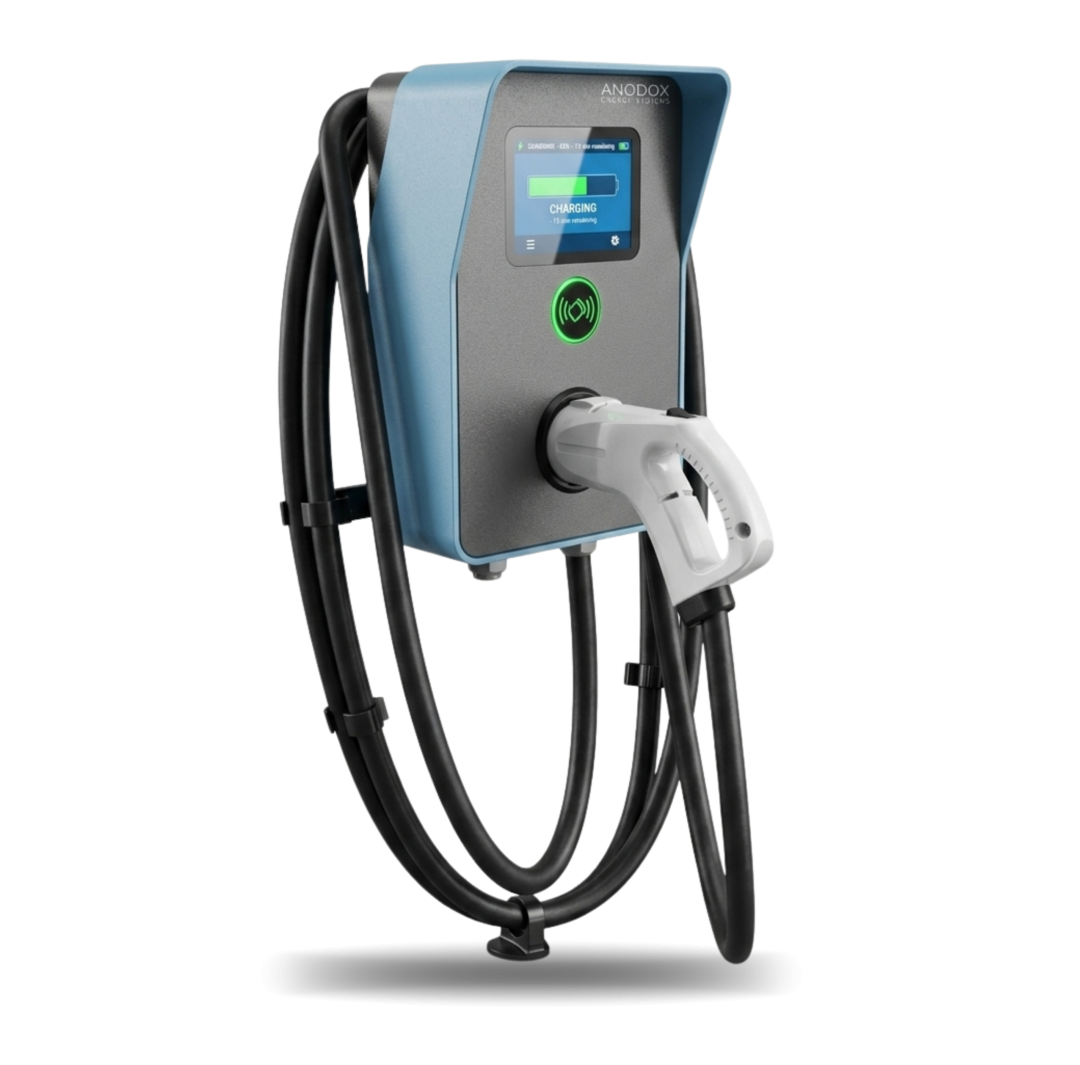

The ADC Wallbox charger is able to charge all current and next generation vehicles with CCS and CHAdeMO. The 30kW charging station is a configurable single outlet wall mounted DC fast charger, supporting the changing needs of each customer. With compact, space-saving and attractive design, it is ideal for a wide range of installations, both indoors and outdoors.
Applications
Service station, Public corridor charging along the highways, Commercial fleet operators, EV Infrastructure operators, EV Garage and EVSE providers.
Features
- DC power up to 30KW
- Supports a single CCS1/CCS2/ CHAdeMO connector
- Overall efficiency ≥95%
- Simple installation, convenient operation
- Daylight readable touch screen display
- Built-in safety measures
- Robust design
- Supports the open communication protocol OCPP
- Low operational noise
- Support multi-language operation
- Customizable
Specifications
x| Category | Parameter | Specification (ANODOX DC-30) |
|---|---|---|
| General | System Capacity | 30kW |
| Input Parameters | 8 | |
| Voltage (V) | 400Vac, 3P+N+PE | |
| Voltage Range | 304V-456Vac | |
| Power Factor / Frequency | >0.99 / 50/60Hz | |
| Output Parameters | Connector Type | Single output CCS1 / CCS2 / CHAdeMO |
| Voltage Range | 150-1000Vdc | |
| Max Current | Maximum 100A | |
| Max Power | 30kW | |
| Recommended SOC Range | 95% | |
| Other Parameters | Display | 10.4” TFT Touch Screen |
| RFID System | ISO/IEC 4443A, Mifare | |
| Network Connection | 4G (GSM or CDMA) | LAN | WI-FI | |
| Operating/Storage Temp | -40°C to +70°C (Working) / -20°C to +60°C (Storage) | |
| Humidity | 5%-95% non-condensing | |
| Altitude / Protection | 2000m / IP54, IK10 | |
| Acoustic Noise | <55dB | |
| Environment | outdoor / indoor | |
| System Protection | Leakage detection, Over/Under-voltage protection, Self-checking recover, Over-temperature protection, Double Lightning protection, Emergency stop, Power failure records. | |
| Compliance and Safety | CE, IEC EN61851, EN62196, DIN70121, ISO15118 | |
| Dimensions (W*D*H) | 460 x 345 x 735mm |
