Overview PowerStack series EV charging stack is a split-type charging system meeting multiple standards CCS, CHAdeMO, GB/T....
Vendor: Anodox
SKU: PowerStack_240
Availability: In Stock
€29.142,00
€29.142,00
Model: PowerStack-240KW 4-8 Outlets
Subtotal: €29.142,00
Ask An Expert
PowerStack DC Satellite EV Charging Solution (Power Stack & Charge Post)

PowerStack DC Satellite EV Charging Solution (Power Stack & Charge Post)

€29.142,00
PowerStack DC Satellite EV Charging Solution (Power Stack & Charge Post)
PowerStack DC Satellite EV Charging Solution (Power Stack & Charge Post)
PowerStack DC Satellite EV Charging Solution (Power Stack & Charge Post)
PowerStack DC Satellite EV Charging Solution (Power Stack & Charge Post)

PowerStack DC Satellite EV Charging Solution (Power Stack & Charge Post)

€29.142,00
Model: PowerStack-240KW 4-8 Outlets
SPECIFICATIONS
SPECIFICATIONS
x
Model PowerStack-240 PowerStack-360
Environment Outdoor / Indoor
System Capcity 240kW 360kW
Maximum Outlets 8 12
Output Capacity of Each Route 0~60kW or 0~120kW 30~180kW
Input Voltage 400Vac±20%
Input Voltage Range 260V~530V (260V~304Vac, Output Power Derating 50%)
Current Share Precision < 3%
Power Factor < 0.99
Working Frequency 50 / 60Hz
Output Voltage 50Vdc-1000Vdc
Current Regulation Accuracy < 1%
Voltage Regulation Accuracy < 0.5%
Current Share Precision < 3%
Overall Efficiency 95%
RFID System ISO / IEC14443A, Mifare;
Nettwork Connection 4G (GSM or CDMA) / LAN / Wi-Fi
Communication Protocols OCPP1.6J (OCPP 2.0 upgradable)
Operating Temperature -35ºC-60ºC(-20ºC - -35ºC, heating required)
Storage Temperature -40ºC - +70ºC
Operating Humidity ≤ 95%, Non-condensing
Altitude Up to 1000m
Protection IP54, IK10
Acoustic Noise < 55dB
Compliance and Safety CE, IEC EN61851, EN62196, DIN70121, ISO15118
Dimension (W*D*H) DC Power Stack 800*650*1850 800*650*2250
Charge Post 320*320*2300
PRODUCT DESCRIPTION
PRODUCT DESCRIPTION
x

Overview

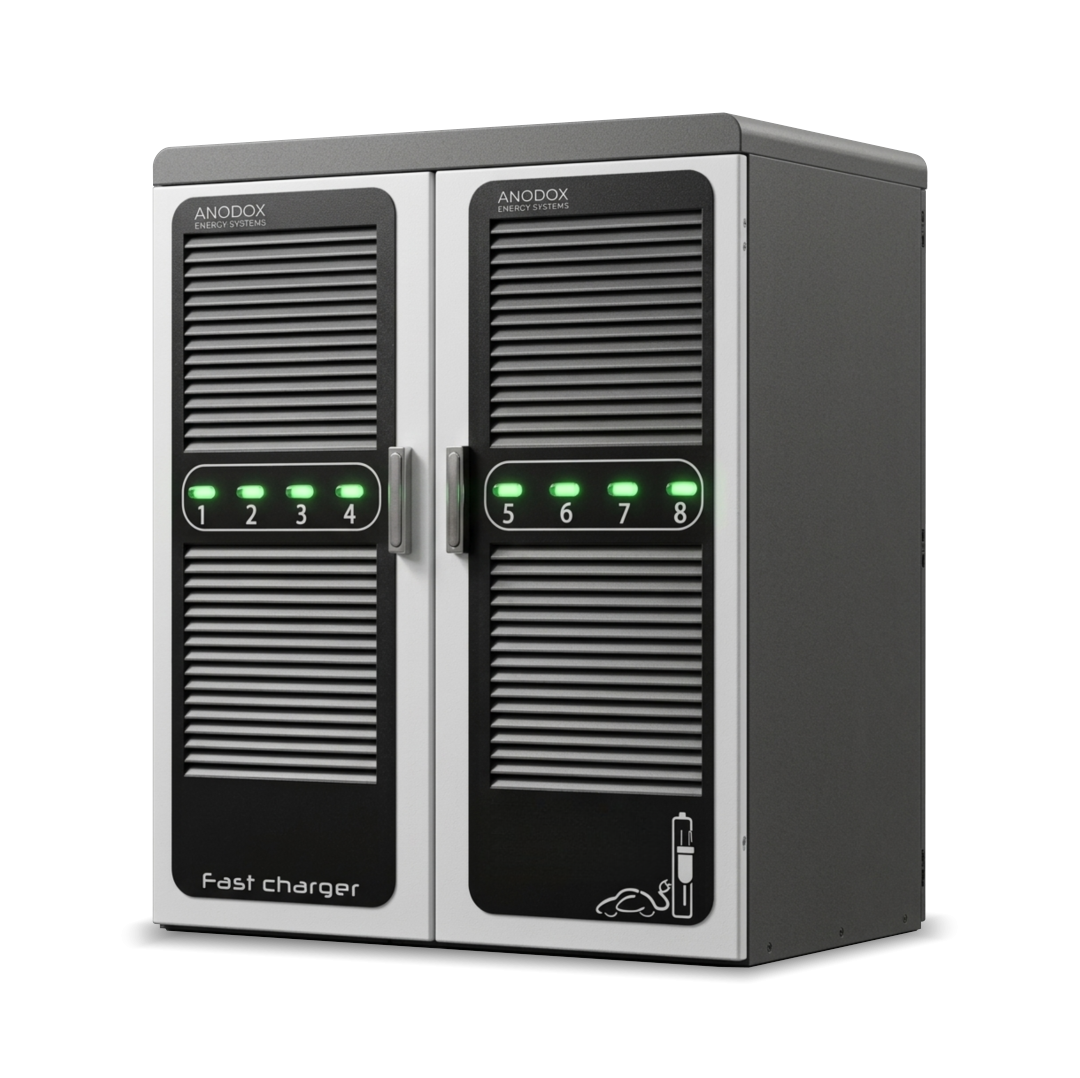

PowerStack series EV charging stack is a split-type charging system meeting multiple standards CCS, CHAdeMO, GB/T. Adopting modular design concept and forefront power electronic technology, consists of power stack, control units and charge posts. Can be installed both outdoor and indoor.

Features

  • Comply with CCS, CHAdeMO, GB/T
  • Flexible power distribution function, dynamically adjust output power according to the demand of electric vehicles.
  • Multi outlets to charge multiple vehicles simultaneously, the output and power as follows.
240KW type: configurable 2 ~8 outlets, each output 0-60KW or 0-120KW;
360KW type stack: configurable 2~ 12 outlets, 30~180KW flexible output.
  • 12.1 inch LCD/LED screen to display information in real time, easy operation and interactive user interface.
  • Supports Web & mobile based payment methods.
  • Insulation monitoring function, automatically turn off output to ensure safe charging.
  • High adaptability of temperature range, isolated heat dissipation air ducts, power heat dispassion is separated from control circuit to ensure dust-free control unit.
  • High efficiency, high reliability, ultra low radiation, fast maintenance, flexible capacity expansion, energy efficiency and environment protection.
