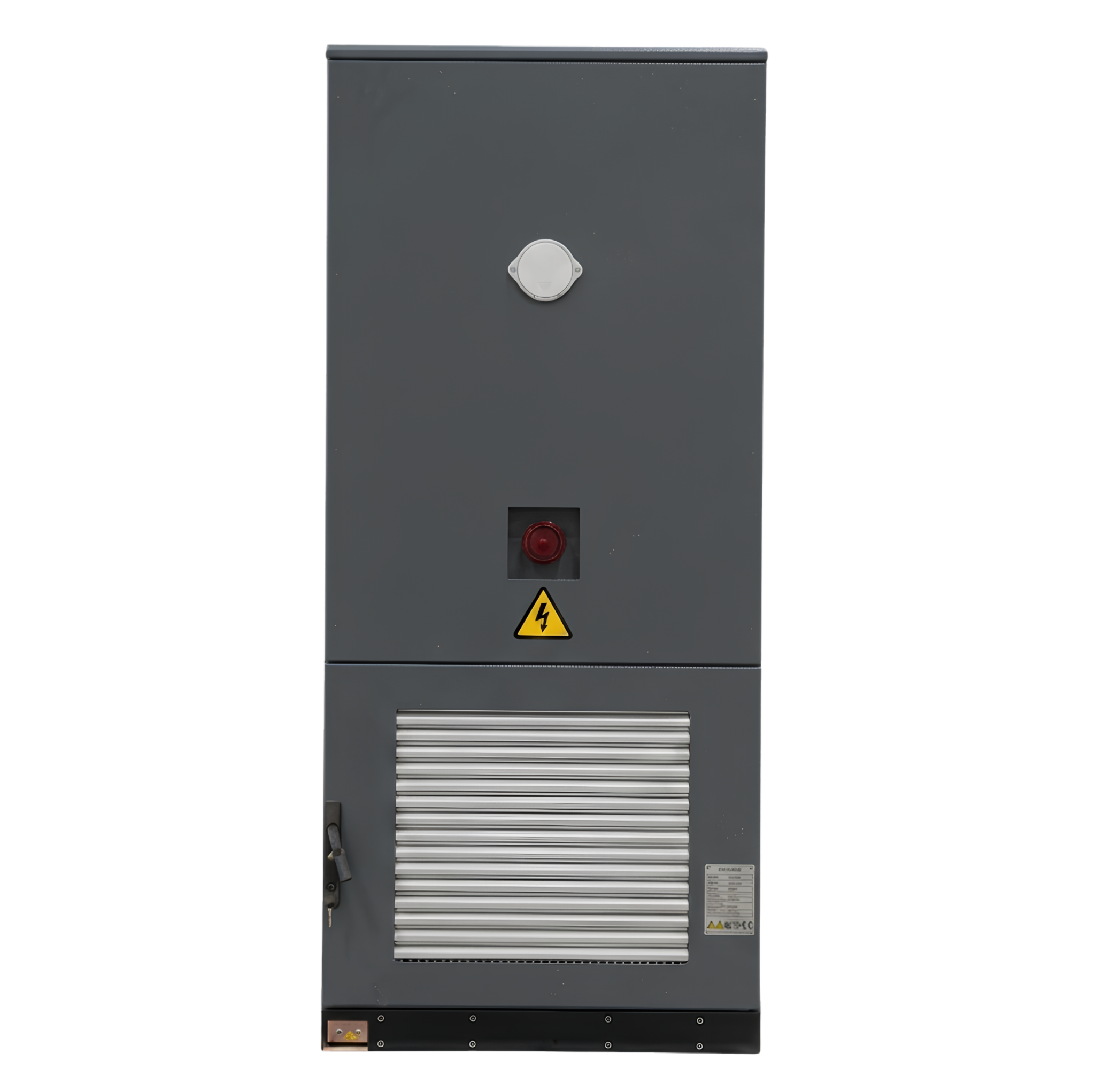

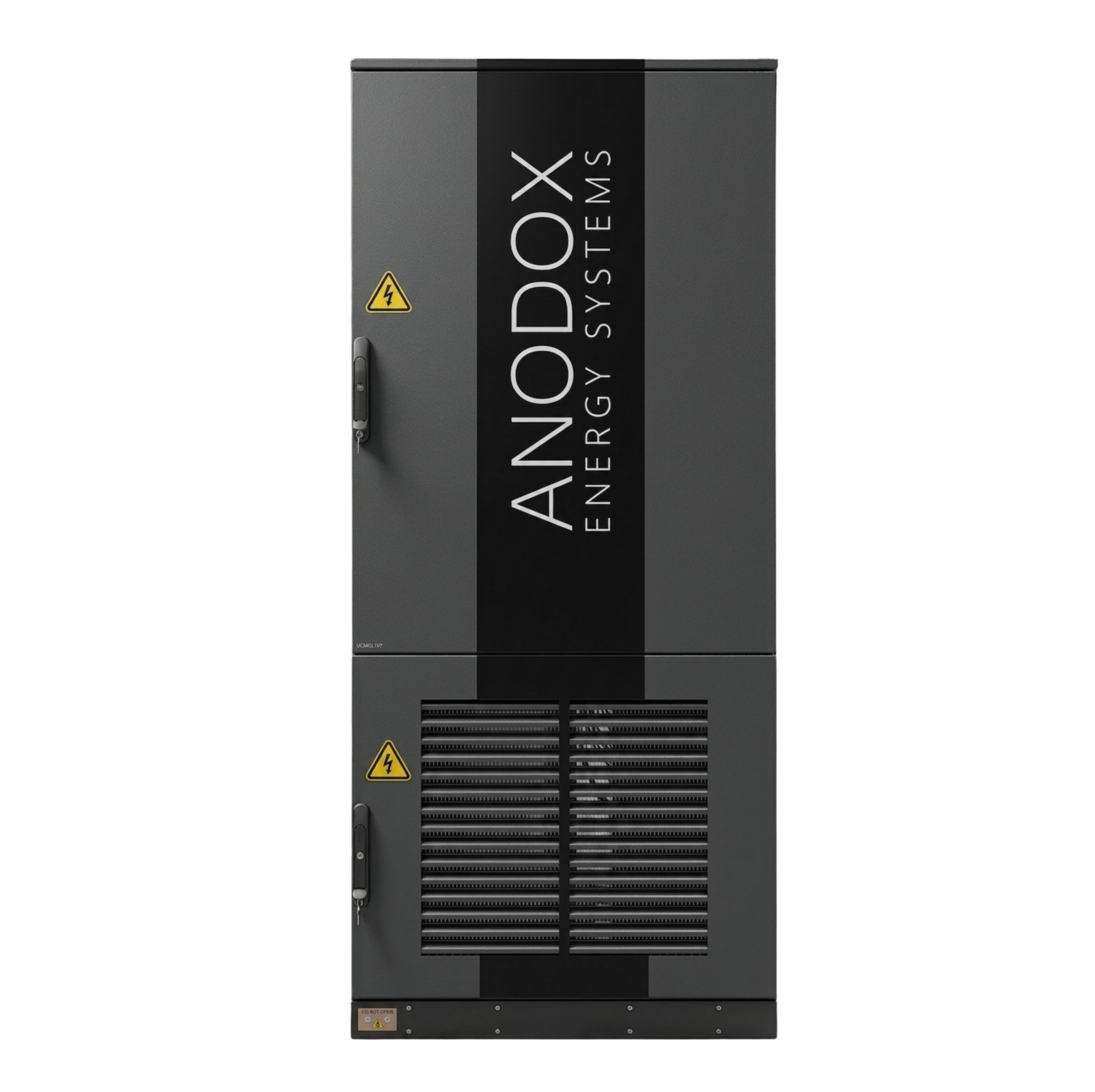

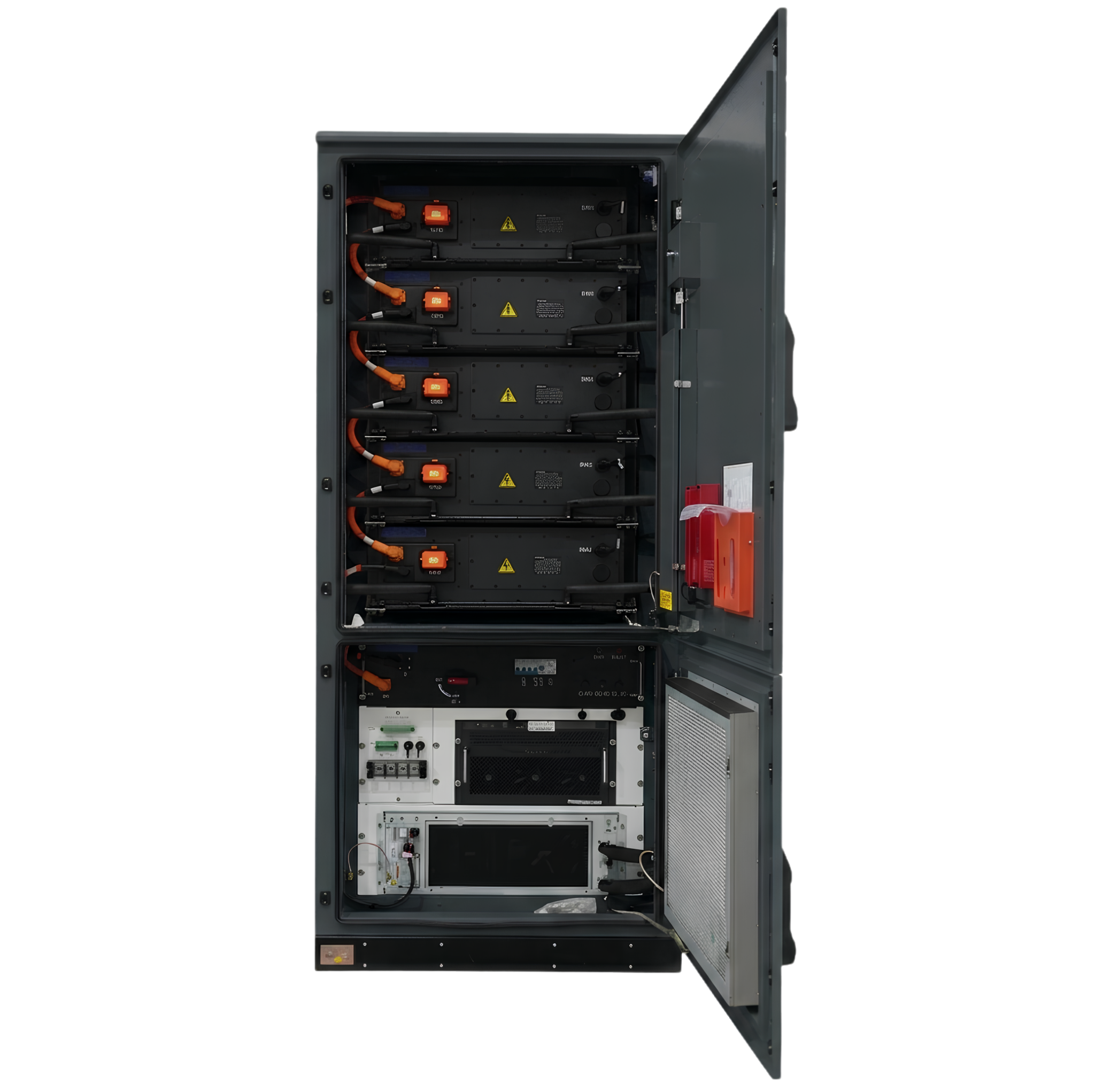

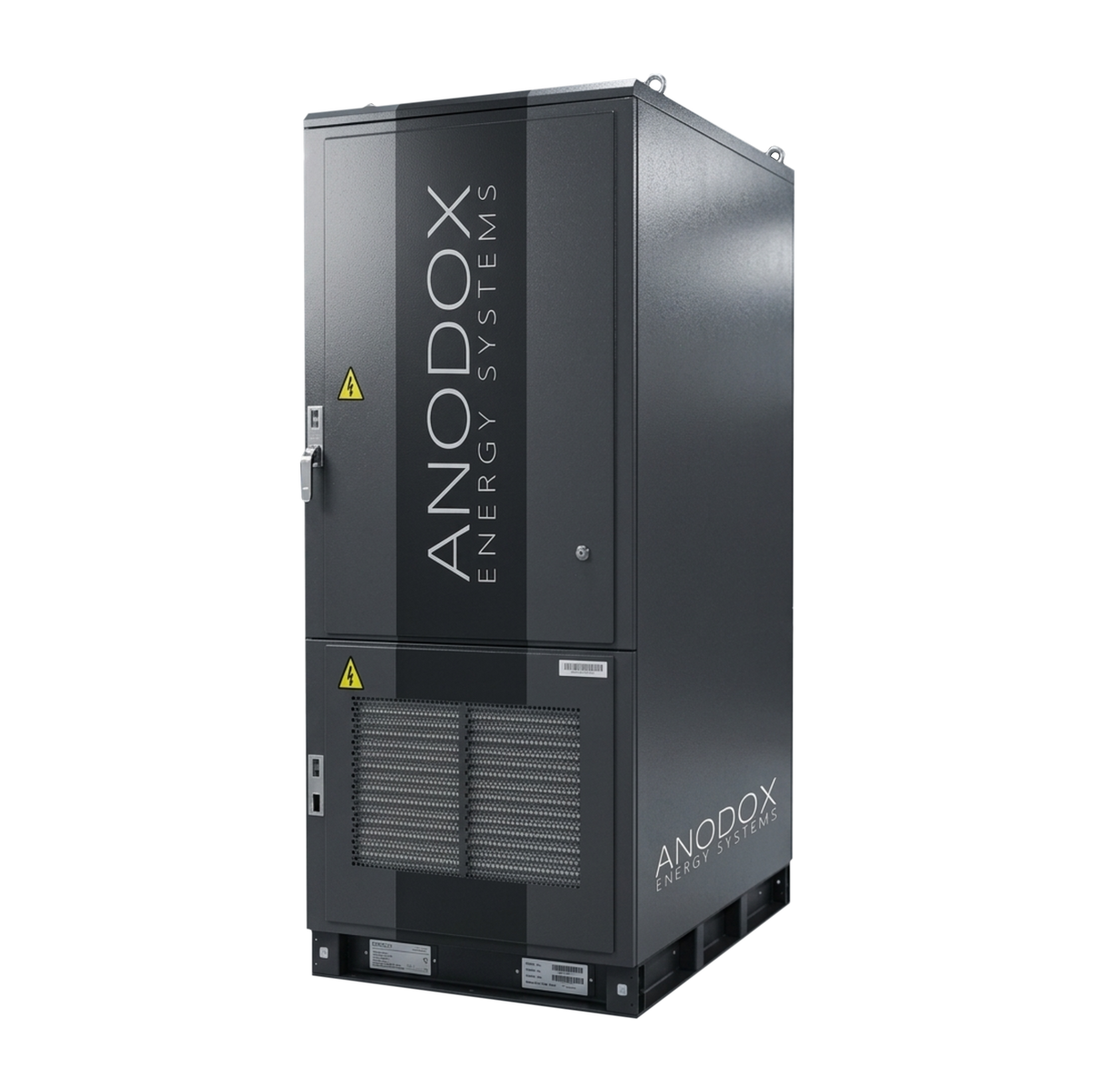

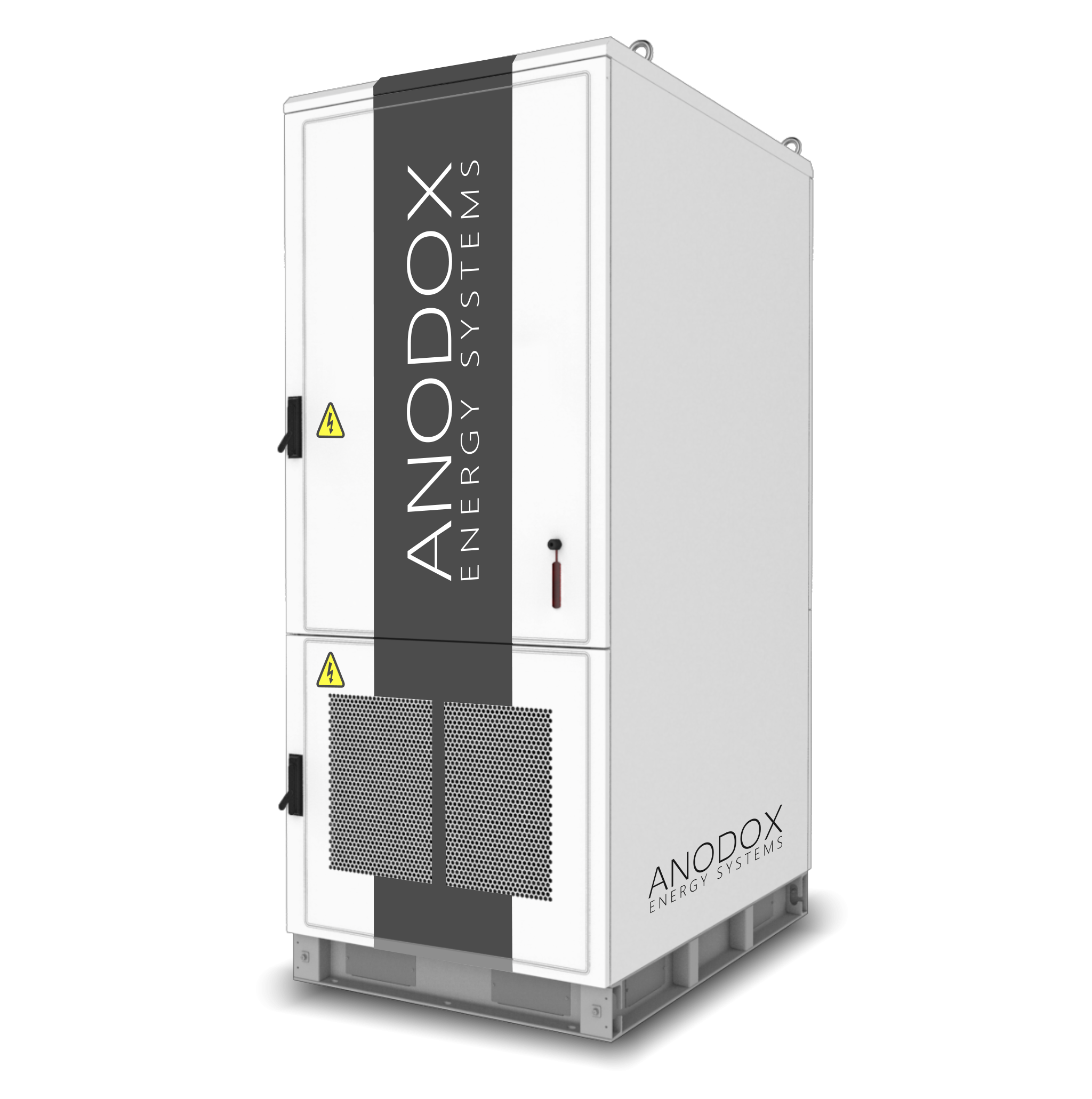

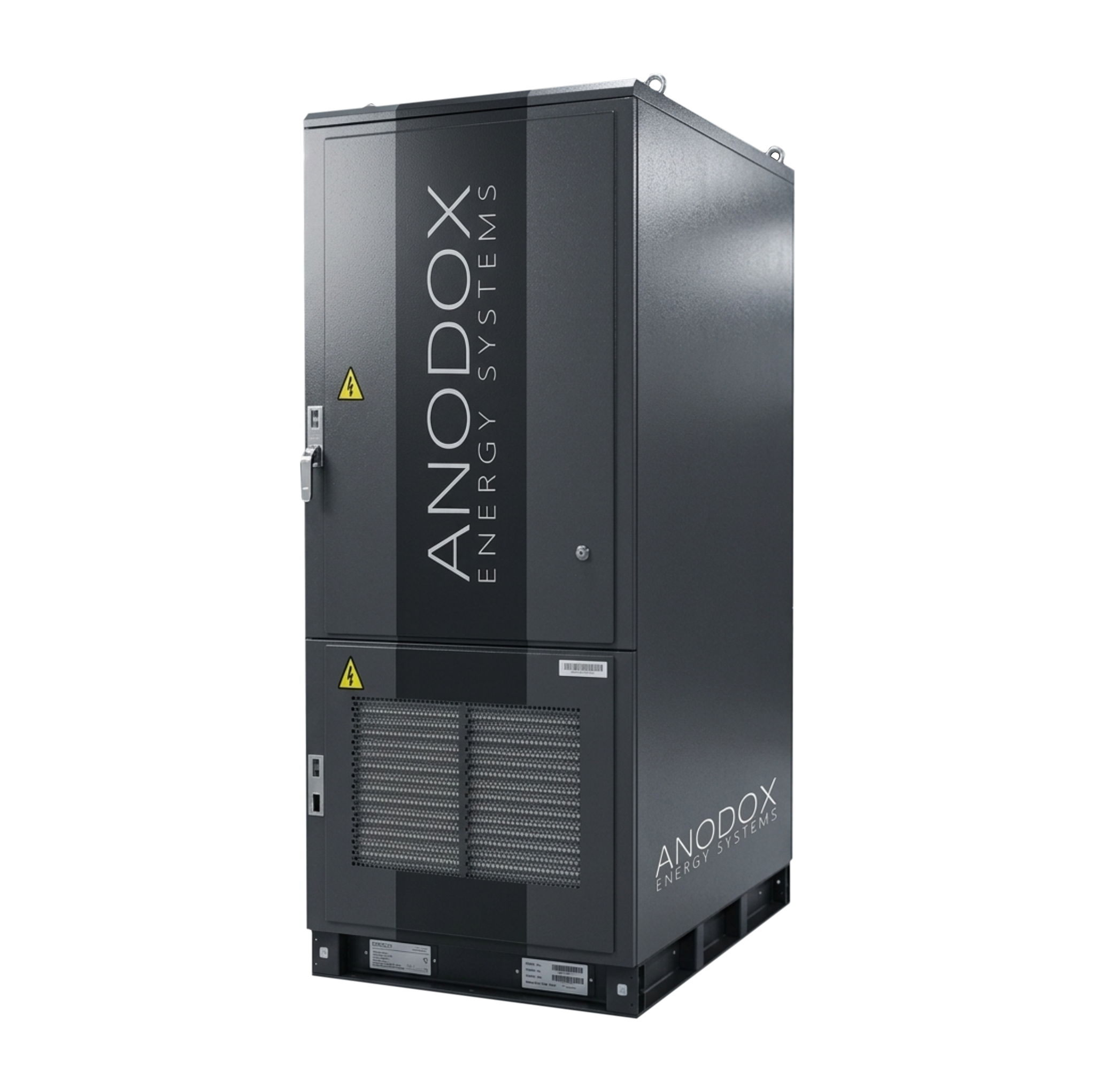

Large-Scale Energy Storage - ALSES-250
ALSES is an intelligent and modular power supply equipment integrating various sizes of lithium battery and bi-directional...
Vendor:
Anodox
Availability:
In Stock
- €41,013.00 EUR
- €41,013.00 EUR
- Unit price
- per
Couldn't load pickup availability
SPECIFICATIONS
x| Model | ALSES-75-50 | ALSES-150-100 | ALSES-225-150 | ALSES-300-200 | ALSES-645-300 | ALSES-1075-500 | |
|---|---|---|---|---|---|---|---|
| AC Parameters (Grid Connected) | Rated Output Power (kW) | 50 | 100 | 150 | 200 | 300 | 500 |
| Max Output Power (kW) | 55 | 110 | 165 | 220 | 330 | 550 | |
| Rated Grid Voltage (V) | 3W+N+PE, 380/400V | ||||||
| Grid Voltage Range | ±15% | ||||||
| Rated Grid Frequency (Hz) | 50 | 50 | 50 | ||||
| Grid Frequency Range (Hz) | ±2 | ±2 | ±2 | ||||
| Current Waveform Distortion Rate | <3% (Rated voltage) | ||||||
| DC Component | <0.5% In | ||||||
| Power Factor | >0.99(Rated voltage) | ||||||
| Power Factor Adjustable Range | 1 (Lead)∼1 (Lag) | ||||||
| Overload Capacity | 110% Long term | ||||||
| AC Parameters (Off Grid) | Rated Output Power (kW) | 50 | 100 | 150 | 200 | 300 | 500 |
| Max Output Power (kW) | 55 | 110 | 165 | 220 | 330 | 550 | |
| Rated Grid Voltage (V) | 3W+N+PE, 380/400V | ||||||
| Current Waveform Distortion Rate | <3% (Linear Load) | ||||||
| Rated Frequency (Hz) | 50 | ||||||
| Overload Capacity | 110% Long term | ||||||
| Battery | Battery Type | Lithium Iron Phosphate | |||||
| Energy of Each Module (kWh) | 5.12 | 5.12 | 5.12 | 5.12 | 10.75 | 10.75 | |
| Module Qty | 15 | 30 | 45 | 60 | 60 | 100 | |
| Total Power (kWh) | 76.8 | 153.6 | 230.4 | 307.2 | 645 | 1075 | |
| Running Time (h) | 1.5 (Optional by Changing Module Qty) | 2 (Optional by Changing Module Qty) | |||||
| Cycle Life | ≥4000 times (25℃ 1C/1C 100%DOD EOL80%) | ≥ 6000 times (25℃ 1C/1C 100%DOD EOL80%) | |||||
| System Efficiency | Max. Efficiency | 95% | 95% | 95% | 95% | 95% | 95% |
| Protection | DC Switch | Yes | |||||
| AC Switch | Yes | ||||||
| Grid Monitoring | Yes | ||||||
| Surge Protection | DC /AC 2nd level | ||||||
| Basic Parameters | Dimensions (W*D*H) mm | 1300*1540*1600 | 1300*2300*1600 | 1300*3060*1600 | 2400*1540*2300 | 3000*2438*2591 | 6096*2438*2591 |
| Weight (kg) | 1060 | 1780 | 2470 | 3170 | 6000 | 9170 | |
| Isolating Transformer | No | Yes | |||||
| On / Off Grid Switching | STS | ||||||
| Protection | Outdoor IP54 | ||||||
| Working Temperature | -20∼55℃(>45℃derating) | ||||||
| Relative Humidity | 0∼95% (no condensing) | ||||||
| Cooling | Intelligent air cooling (intelligent heating optional) | ||||||
| Max Working Altitude (m) | 4000(>2000 derating) | ||||||
| Display | Touch screen | ||||||
| Communication | RS485, CAN, LAN | ||||||
| Communication Protocol | Modbus-RTU, Modbus-TCP, CAN2.0B | ||||||
PRODUCT DESCRIPTION
xALSES is an intelligent and modular power supply equipment integrating various sizes of lithium battery and bi-directional inverter solutions.
Depending on the different application scenarios, lithium battery, bidirectional DC / AC converter, bidirectional DC / DC converter, Static switch and Power management system can be arbitrarily combined to realize the following
- grid connected power supply,
- off grid power supply
- off grid uninterrupted power supply
- power supply, static reactive power compensation,
- harmonic suppression
- other functions (e.g. Solar Interfaces and EV Charger Interfaces.
The system can have access to new energy, power grid, diesel generator and to reasonable configuration, scientific utilization, to provide users with green, environmental protection, noise free, high reliability and high security power services.
