Product Details

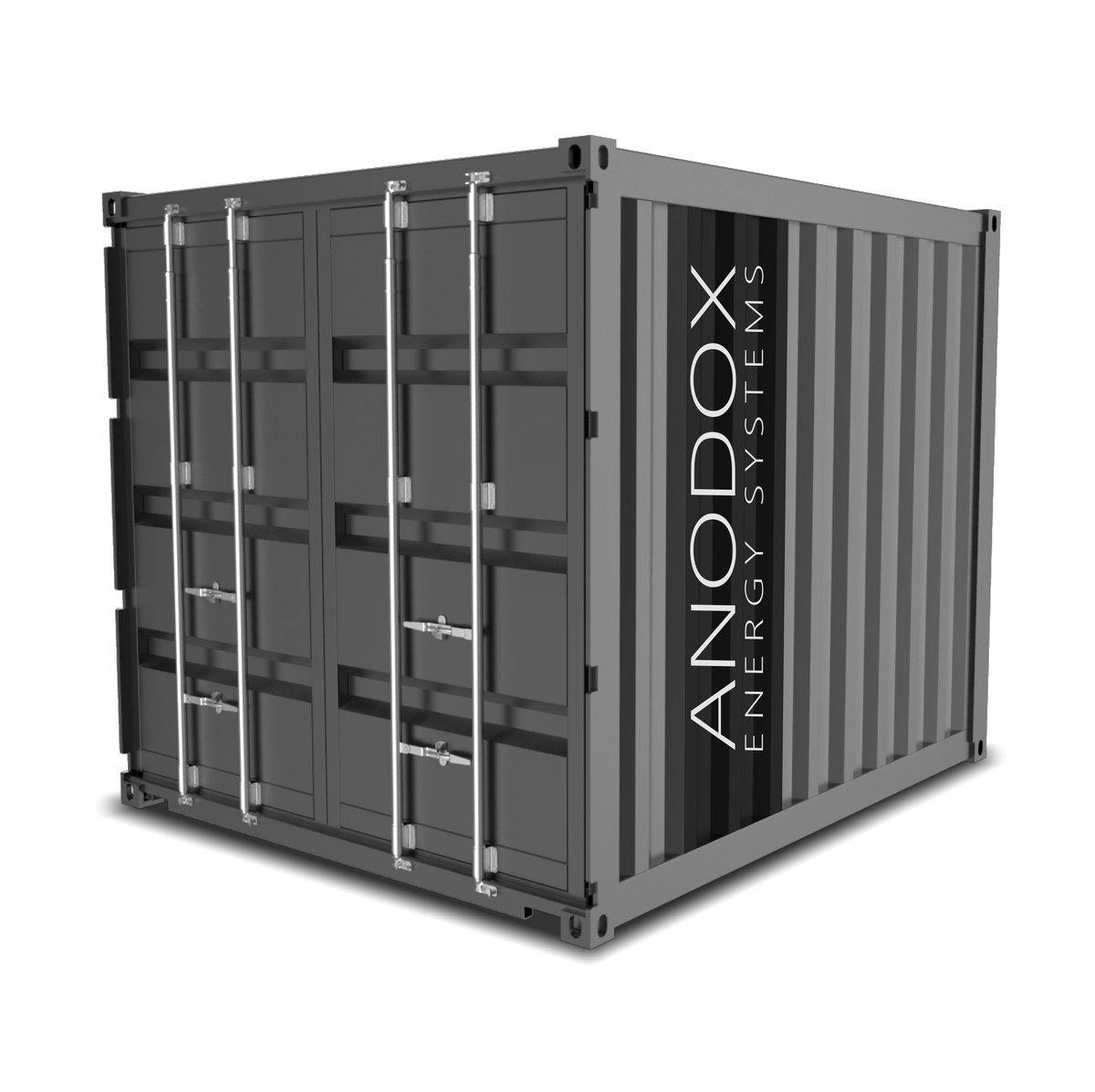

xThe Anodox 10ft Transportable Energy Storage Container is a tactical powerhouse engineered for the world's most unforgiving environments. Built into a reinforced, ultra-ruggedized shell, this compact unit is specifically designed to withstand the vibration, impact, and extreme weather typical of military deployments and offshore marine applications . Whether navigating high-salt coastal air or remote battlefield terrain, its weather-hardened exterior ensures mission-critical reliability where standard systems fail. This is a "drop-and-go" energy fortress that delivers consistent, high-capacity power to any latitude or longitude on the map.
Proudly made in Europe , this system seamlessly integrates renewable sources, grid power, and diesel generators into a smart, multi-source configuration designed for maximum efficiency. By utilizing our proprietary Adaptive Immersion Technology , the unit ensures peak thermal stability and unmatched reliability, even under the most strenuous duty cycles and extreme environmental conditions. This sophisticated energy management approach provides users with a green, whisper-quiet, and high-security power service that eliminates the noise and pollution of traditional generators.
Featuring premium LFP batteries specifically selected for the rigors of mobile use, this ruggedized storage solution serves as a zero-emission , ultra-mobile energy bridge. Its robust construction is engineered to be highly adaptable to various terrains, making it an ideal choice for everything from remote industrial sites to demanding tactical applications.
Specifications
x```html
```
| Category | Parameter | Specification (ALSES-1040kWh-500kW) |
|---|---|---|
| PV Parameter | Maximum Photovoltaic Access Power | 400KW |
| Rated Current | 606A | |
| Rated Input Voltage | 3W+N+PE, 380V/400V | |
| Rated Frequency | 50Hz/60Hz | |
| DC Side Parameter | Voltage Range | DC580V~DC900V |
| DC Channel | 5 | |
| Rated Single Channel Current | 170A | |
| AC Parameter (On-Grid) | Rated Output Power | 500kW |
| Rated Grid Voltage | 3W+N+PE, 380V/400V | |
| Grid Voltage Range | -15%~+10% | |
| Rated Grid Frequency | 50Hz/60Hz | |
| Grid Frequency Range | ±2Hz | |
| Output Current Harmonics | ≤3% (rated power) | |
| DC Component / Power Factor Range | <0.5%In / -0.9 - +0.9 | |
| AC Parameter (Off-Grid) | AC Parameter (Off Grid) | 500kW |
| Maximum Output Power | 525kVA | |
| Rated Output Voltage | 3W+N+PE, 380/400V | |
| Output Voltage Harmonics / Rated Freq | 3% / 50Hz/60Hz | |
| Overload Capacity | 105%: continuous; 105%–120%: 10 min; 120%: 1 min | |
| Battery Parameter | Cell Type | Lithium Iron Phosphate |
| Battery System Capacity | 4160kWh Up To 1248kWh | |
| Rated Running Time | 2 h (customizable) | |
| Cycle Life | 6,000 times (0.5C @ 25°C, 90% DOD, EOL 80%) | |
| Protection | AC Switch / PV AC Switch | Equipped |
| Grid Monitoring | Equipped | |
| Surge Protection | Equipped | |
| Protection Grade | IP54 for outdoor type | |
| Basic Parameters | Size (W*D*H) (mm) | 2998 x 2438 x 2591 |
| Weight (kg) | 4750kg Up To 13000kg | |
| Isolation Mode | Isolation transformer (built-in) | |
| On-Grid & Off-Grid Switching | STS (Electronic Switch) | |
| Working Temperature Range | -20°C-55°C (derating above 45°C) | |
| Relative Humidity | 0~95% without condensing | |
| Temperature Control Method | Elec. Compartment: Air Cooling / Batteries: Immersion | |
| Maximum Working Altitude | 2000m at 45°C; 2000m-4000m without derating | |
| Display | Touch Screen | |
| Communication | RS485, LAN / Modbus-RTU, Modbus-TCP |
