Product Details

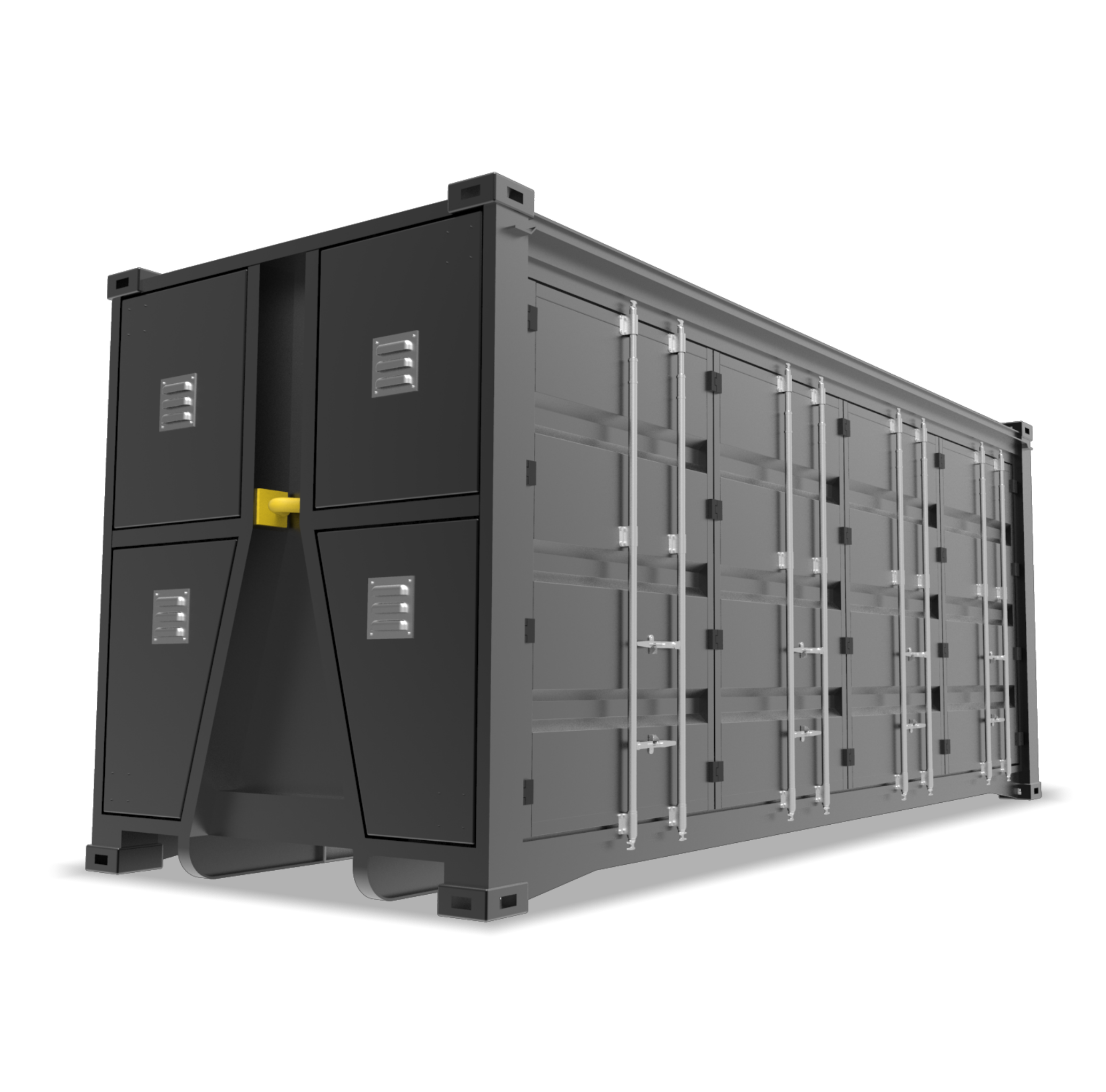

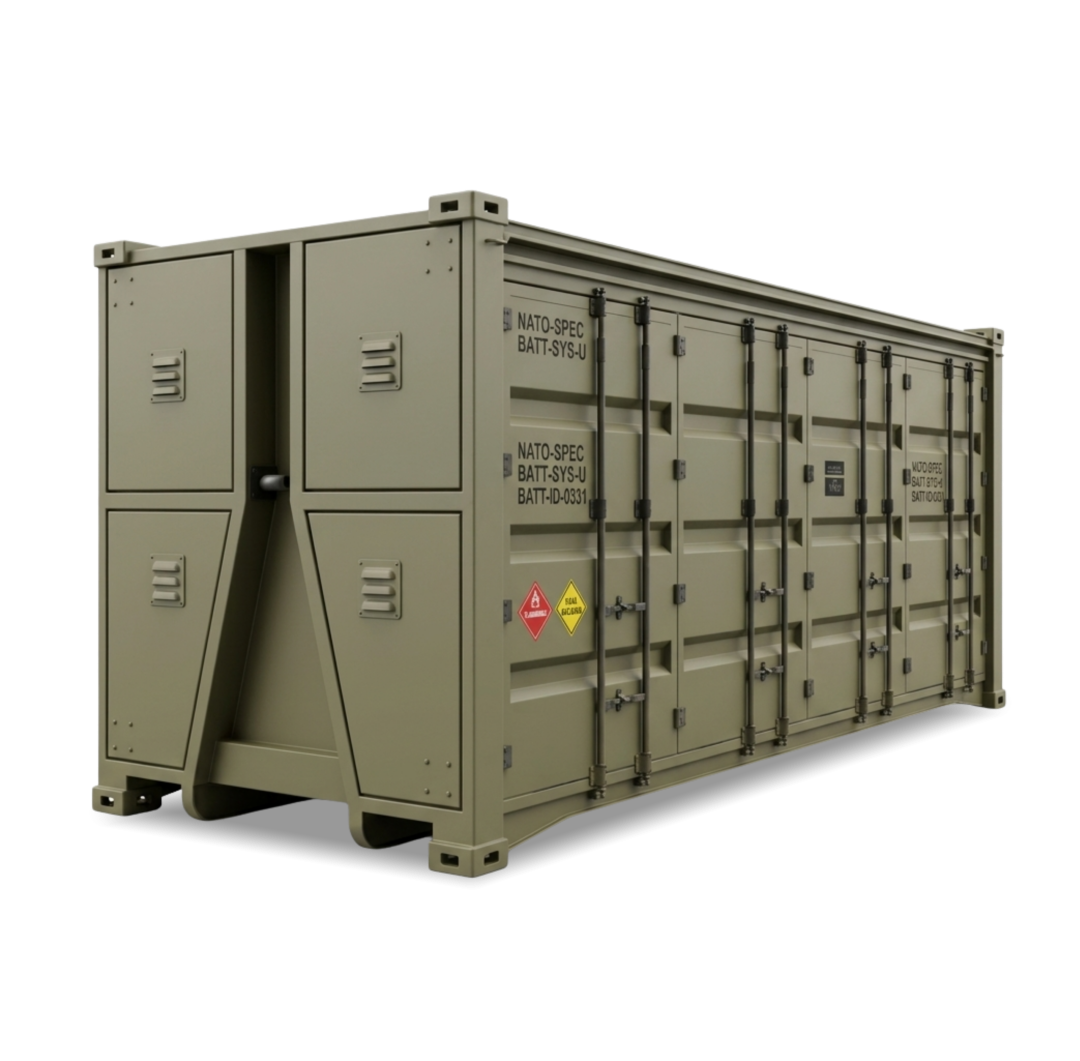

xThe Anodox Rapid Deployment 20ft Energy Storage Container is a tactical-grade power solution engineered for the world's most demanding environments. Proudly made in Europe , this system is built into a reinforced, ultra-ruggedized shell designed to withstand the intense vibrations and extreme conditions of military operations and marine applications. Utilizing our proprietary adaptive immersion technology , the system ensures peak thermal stability by submerging cells in a specialized dielectric fluid, providing unmatched reliability and performance even in high-stakes, off-grid scenarios.
Understanding that every mission is unique, this container is completely configurable to meet specific customer requirements, from power-to-energy ratios to specialized environmental hardening. Safety is prioritized through a multi-tier defense strategy, including an advanced internal fire suppression system for rapid containment and robust external fire protection to safeguard the surrounding infrastructure. This makes it a self-contained energy fortress that can be deployed anywhere—from remote coastal installations to rugged battlefield terrains.
Whether you are stabilizing a naval microgrid or providing critical power for mobile tactical units, the Anodox 20ft container delivers "drop-and-go" energy with zero compromises. Its modular design allows for seamless scalability, ensuring that your power infrastructure can grow and adapt as quickly as your operations do. With Anodox, you get a durable, high-performance energy reservoir that brings world-class European manufacturing to the front lines of the energy transition.
Key Features:
- Rugged & Fire-Resistant Design: Built to meet military-grade durability.
- Scalable Power: Flexible deployment for various energy needs.
- Anodox Adaptive Immersion Technology: Advanced thermal management for superior safety and efficiency.
- Rapid Deployment: Designed for quick installation in any terrain or climate.
Power your mission with confidence, anywhere in the world.
Specifications
x| Category | Parameter | Specification (RD-ALSES-Up To 5MWh) |
|---|---|---|
| PV Parameter | Maximum Photovoltaic Access Power | 800KW |
| Rated Current | Depending on Configuration | |
| Rated Input Voltage | 3W+N+PE, 380V/400V | |
| Rated Frequency | 50Hz/60Hz | |
| DC Side Parameter | Voltage Range | DC580V~DC900V |
| DC Channel | 10 | |
| Rated Single Channel Current | Depending On Configuration | |
| AC Parameter (On-Grid) | Rated Output Power | Depending On Configuration |
| Rated Grid Voltage | 3W+N+PE, 380V/400V | |
| Grid Voltage Range | -15%~+10% | |
| Rated Grid Frequency | 50Hz/60Hz | |
| Grid Frequency Range | ±2Hz | |
| Output Current Harmonics | ≤3% (rated power) | |
| DC Component / Power Factor | <0.5%In / -0.9 - +0.9 | |
| AC Parameter (Off-Grid) | AC Parameter (Off Grid) | Depending On Configuration |
| Maximum Output Power | Depending On Configuration | |
| Rated Output Voltage | 3W+N+PE, 380/400V | |
| Output Voltage Harmonics / Freq | 3% / 50Hz/60Hz | |
| Overload Capacity | 105% cont.; 105%–120%: 10 min; 120%: 1 min | |
| Battery Parameter | Cell Type | Lithium Iron Phosphate |
| Battery System Capacity | Depending On Configuration | |
| Rated Running Time | 2 h (customizable) | |
| Cycle Life | 9,000 times (0.5C @ 25°C, 90% DOD, EOL 80%) | |
| Protection | AC Switch / PV AC Switch | Equipped |
| Grid Monitoring | Equipped | |
| Surge Protection | Equipped | |
| Protection Grade | IP54 for outdoor type | |
| Basic Parameters | Size (W*D*H) (mm) | 6058*2438*2591 |
| Weight (kg) | Depending On Configuration | |
| Isolation Mode | Isolation transformer (built-in) | |
| On-Grid & Off-Grid Switching | Electrically Operated | |
| Working Temperature Range | -20°C-55°C (derating above 45°C) | |
| Relative Humidity | 0~95% without condensing | |
| Temperature Control Method | Elec. Compartment: Air Cooling / Batteries: Immersion | |
| Maximum Working Altitude | 2000m at 45°C; 2000m-4000m without derating | |
| Display | Touch Screen | |
| Communication | RS485, LAN / Modbus-RTU, Modbus-TCP |
